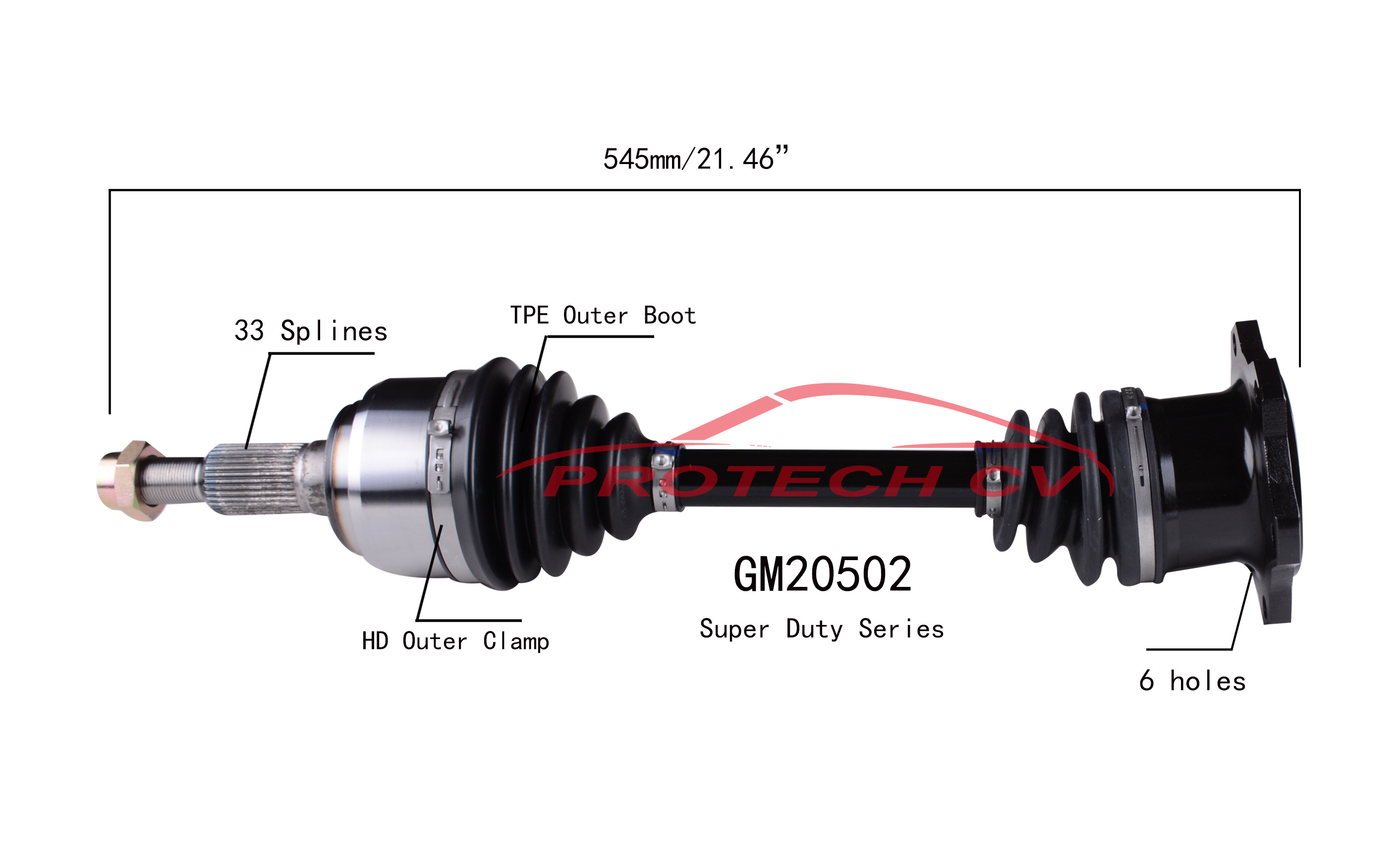

Name: 2002-2006 Cadillac Escalade ESV Cv Drive Shaft GM20502 Cold Forging Grinding Process
Brand: Changzhou Chaoyu Mechanical Manufacture Co., Ltd.
SKU: GM20502
Availability: InStock

Detail Information

Material:	55# Or 20CrMnTi Steel, High Quality Heat-treatment	Design:	100% Match OE Sample , General Design To Make Axle Simple
Technology 1#:	Cold Forging Joint Housing	Technology 2#:	Joint All Grinding, Check Each Tripod To Make It 100% Match Inner Joint
Boot:	TPEE Boot Can Resist Lowest Temperature -40 ℃, And Highest Temperature 160 ℃	Clamp:	Heavy Duty Clamp, OE Steel
Customized Service:	Provide Modified Car And Race Car Customization Services	Process:	Factory Whole Industry Process, Better Quality Control
HD Axle:	EXTREME Weather Unit Axle
Highlight:	Cadillac Escalade ESV cv drive shaft , 2002-2006 Cadillac cv drive shaft , GM20502

Product Description

GM20502 CV Axle Assembly Heavy Duty Clamp TPEE Boot Cold Forging Grinding Process Technology EXTREME Weather Unit

Product technical features:

1/OE design &manufacture process , used TPEE boot and heavy duty clamp.

2/ used cold forging process and Advanced heat treatment equipment and process, more strength for whole axle

3/ grinding process and molybdenum disulfide grease make make axle more smooth and soft .

Make	Model	Qualifiers	Year
Cadillac	Escalade	Position: Front Right All Configurations	1999-2000, 2002-2006
Cadillac	Escalade	Position: Front Left All Configurations	1999-2000, 2002-2006
Cadillac	Escalade ESV	Position: Front Right All Configurations	2003-2006
Cadillac	Escalade ESV	Position: Front Left All Configurations	2003-2006
Cadillac	Escalade EXT	Position: Front Right All Configurations	2002-2006
Cadillac	Escalade EXT	Position: Front Left All Configurations	2002-2006
Chevrolet	Avalanche 1500	Position: Front Right All Configurations	2002-2006
Chevrolet	Avalanche 1500	Position: Front Left All Configurations	2002-2006
Chevrolet	C1500	Position: Front Right Base Extended Cab Pickup	1994-1997
Chevrolet	C1500	Position: Front Right Cheyenne Standard Cab Pickup	1994-1998
Chevrolet	C1500	Position: Front Right WT Standard Cab Pickup	1994-1998
Chevrolet	C1500	Position: Front Right Base Standard Cab Pickup	1994-1997
Chevrolet	C1500	Position: Front Right Cheyenne Extended Cab Pickup	1994-1998
Chevrolet	C1500	Position: Front Left Cheyenne Extended Cab Pickup	1995-1998
Chevrolet	C1500	Position: Front Left WT Standard Cab Pickup	1995-1998
Chevrolet	C1500	Position: Front Left Cheyenne Standard Cab Pickup	1995-1998
Chevrolet	C1500	Position: Front Left Base Standard Cab Pickup	1995-1997
Chevrolet	C1500	Position: Front Left Base Extended Cab Pickup	1995-1997
Chevrolet	C1500	Position: Front Right LS Extended Cab Pickup	1999
Chevrolet	C1500	Position: Front Left LS Extended Cab Pickup	1999
Chevrolet	C1500 Suburban	Position: Front Right All Configurations	1992-1999
Chevrolet	C1500 Suburban	Position: Front Left All Configurations	1992-1999
Chevrolet	K1500	Position: Front Left 4.3L V6 262ci 4WD Automatic	1998
Chevrolet	K1500	Position: Front Left 5.0L V8 305ci 4WD Automatic	1998-1999
Chevrolet	K1500	Position: Front Left 5.7L V8 350ci 4WD Automatic	1998-1999
Chevrolet	K1500	Position: Front Right 4.3L V6 262ci 4WD Automatic	1998
Chevrolet	K1500	Position: Front Right 5.0L V8 305ci 4WD Automatic	1998-1999
Chevrolet	K1500	Position: Front Right 5.7L V8 350ci 4WD Automatic	1998-1999
Chevrolet	K1500 Suburban	Position: Front Left 5.7L V8 350ci GAS 4WD	1994-1999
Chevrolet	K1500 Suburban	Position: Front Right 5.7L V8 350ci GAS 4WD	1994-1999
Chevrolet	K2500	Position: Front Right All Configurations	1998-1999
Chevrolet	K2500	Position: Front Left All Configurations	1998-1999
Chevrolet	Silverado 1500	Position: Front Right All Configurations	1999-2006
Chevrolet	Silverado 1500	Position: Front Left All Configurations	1999-2006
Chevrolet	Silverado 1500 Classic	Position: Front Left All Configurations	2007
Chevrolet	Silverado 1500 Classic	Position: Front Right All Configurations	2007
Chevrolet	Suburban 1500	Position: Front Right All Configurations	2000-2006
Chevrolet	Suburban 1500	Position: Front Left All Configurations	2000-2006
Chevrolet	Tahoe	Position: Front Right 5.7L V8 350ci 4WD	1995-1999
Chevrolet	Tahoe	Position: Front Left 5.7L V8 350ci 4WD	1995-1999
Chevrolet	Tahoe	Position: Front Right All Configurations	2000-2006
Chevrolet	Tahoe	Position: Front Left All Configurations	2000-2006
GMC	C1500	Position: Front Right Sierra SLE Standard Cab Pickup	1992-1998
GMC	C1500	Position: Front Right Sierra Standard Cab Pickup	1992-1993
GMC	C1500	Position: Front Right Sierra SLX Standard Cab Pickup	1992-1993
GMC	C1500	Position: Front Right Sierra Extended Cab Pickup	1992-1993
GMC	C1500	Position: Front Right Sierra SLX Extended Cab Pickup	1992-1993
GMC	C1500	Position: Front Right Sierra SLE Extended Cab Pickup	1992-1999
GMC	C1500	Position: Front Left Sierra SLE Standard Cab Pickup	1992-1998
GMC	C1500	Position: Front Left Sierra Standard Cab Pickup	1992-1993
GMC	C1500	Position: Front Left Sierra SLX Standard Cab Pickup	1992-1993
GMC	C1500	Position: Front Left Sierra Extended Cab Pickup	1992-1993
GMC	C1500	Position: Front Left Sierra SLX Extended Cab Pickup	1992-1993
GMC	C1500	Position: Front Left Sierra SLE Extended Cab Pickup	1992-1999
GMC	C1500	Position: Front Right Sierra SLT Extended Cab Pickup	1994-1999
GMC	C1500	Position: Front Right Sierra Special Standard Cab Pickup	1994-1998
GMC	C1500	Position: Front Right Sierra SL Extended Cab Pickup	1994-1999
GMC	C1500	Position: Front Right Sierra SL Standard Cab Pickup	1994-1998
GMC	C1500	Position: Front Left Sierra SLT Extended Cab Pickup	1994-1999
GMC	C1500	Position: Front Left Sierra Special Standard Cab Pickup	1994-1998
GMC	C1500	Position: Front Left Sierra SL Extended Cab Pickup	1994-1999
GMC	C1500	Position: Front Left Sierra SL Standard Cab Pickup	1994-1998
GMC	C1500	Position: Front Right Sierra SLT Standard Cab Pickup	1995-1998
GMC	C1500	Position: Front Left Sierra SLT Standard Cab Pickup	1995-1998
GMC	C1500	Position: Front Right Sierra GT Standard Cab Pickup	1997
GMC	C1500	Position: Front Left Sierra GT Standard Cab Pickup	1997
GMC	C1500 Suburban	Position: Front Right All Configurations	1998-1999
GMC	C1500 Suburban	Position: Front Left All Configurations	1998-1999
GMC	K1500	Position: Front Right All Configurations	1998-1999
GMC	K1500	Position: Front Left All Configurations	1998-1999
GMC	K2500	Position: Front Left All Configurations	1998-1999
GMC	K2500	Position: Front Right All Configurations	1998-1999
GMC	K2500 Suburban	Position: Front Left 5.7L V8 350ci	1992-1998
GMC	K2500 Suburban	Position: Front Right 5.7L V8 350ci	1992-1998
GMC	Sierra 1500	Position: Front Right All Configurations	1999-2006
GMC	Sierra 1500	Position: Front Left All Configurations	1999-2006
GMC	Yukon	Position: Front Left All Configurations	1995-2006
GMC	Yukon	Position: Front Right All Configurations	1995-2006
GMC	Yukon XL 1500	Position: Front Right All Configurations	2000-2006
GMC	Yukon XL 1500	Position: Front Left All Configurations	2000-2006

2002-2006 Cadillac Escalade ESV Cv Drive Shaft GM20502 Cold Forging Grinding Process 0

2002-2006 Cadillac Escalade ESV Cv Drive Shaft GM20502 Cold Forging Grinding Process 1

2002-2006 Cadillac Escalade ESV Cv Drive Shaft GM20502 Cold Forging Grinding Process 2

Tag:

Place of Origin:	China
Brand Name:	Protech CV
Certification:	IATF16949
Model Number:	GM20502

Minimum Order Quantity:	30
Price:	Negotiating Prices
Packaging Details:	paper box /pallets
Delivery Time:	60-75 days
Payment Terms:	FOB
Supply Ability:	100000Pcs

2002-2006 Cadillac Escalade ESV Cv Drive Shaft GM20502 Cold Forging Grinding Process

Cadillac Escalade ESV cv drive shaft

2002-2006 Cadillac cv drive shaft

GM20502

cv complete assembly,

FWD front drive axle assembly,

cv shaft assembly
